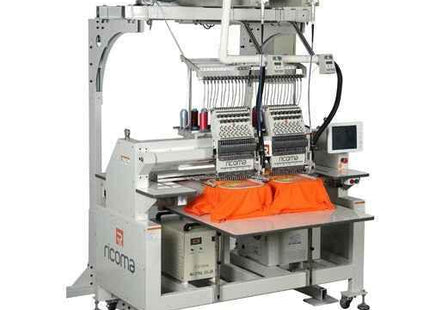

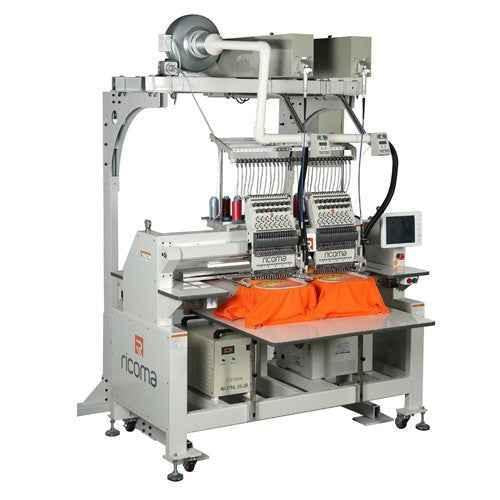

Models：CHT2-1502-LCNeedles：15Head：2EMB.area：400 x 450 mm [16” x 18”]Net Weight：400 kilograms [881 lbs]Size：L: 1,820 mm W: 980 mm H: 1,600 mm
L: 72” W: x 39” H: 63
• Double beam design to reinforce machine stability and reduce vibration
• Double belt system allows for higher torque, less noise and easier maintenance
• Reinforced square guide rails allow for higher impact resistance and durability
• Leveling feet pre-mounted in the factory for easy transportation and installation
• Double lighting system for better visibility
• Suitable for embroidery on flats, caps, fnished garments and more
• Perfect for established and growing embroidery businesses
• 10.4-inch HD LCD touch-screen panel
• Maximum embroidery area: 400 mm x 450 mm [16” x 18”]
• Optional wide model with embroidery area of 500 mm x 450 mm [20” x 18”]
• Newly developed small sewing arm for high-quality embroidery on caps and small items
• Heavy duty steel stand with wheels to ensure stability and mobility
• Maximum speed: 1,000 stitches per minute
• Memory capacity: 50 million stitches or 200 designs
• 270° wide angle cap system
• Environmentally friendly packaging
• USB input
• Servo motor 150 W – lowest power consumption in the industry!
• Built-in universal power supply 110V/60Hz and 200V/50Hz (selfadaptable worldwide)
• DC36V micro-step motor for X & Y axis driving to ensure low noise and less vibration
• Emergency stop button
• Automatic thread trimmer
• Thread break detection
• Easily apply appliqué, sequin, boring or cording
• Recessed USB port to protect USB flash drive
• Machine reads multiple design formats, such as DST, DSB and more
• New embroidery frame positioning board makes changing embroidery frames easier
• Slim machine width allows for easy entry through standard sized
doors
• Multiple hoop sizes for a variety of embroidery needs
• Automatic memory retention
• Optional laser tracing device available
