Meta Description:

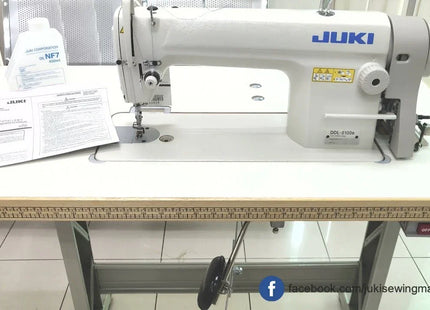

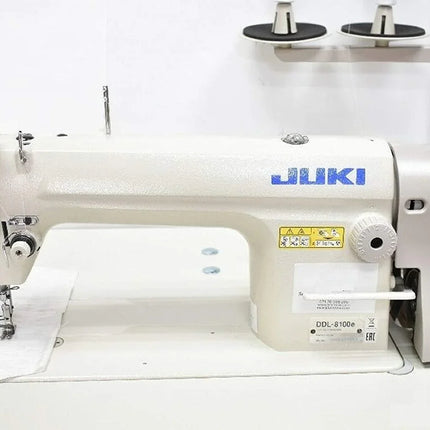

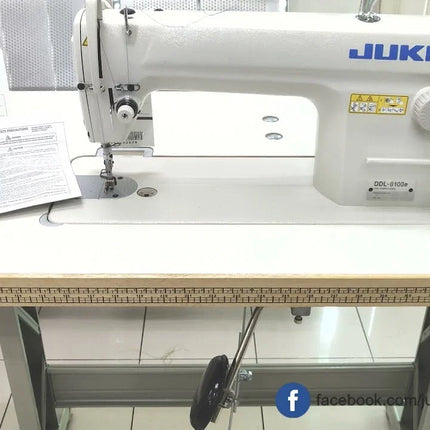

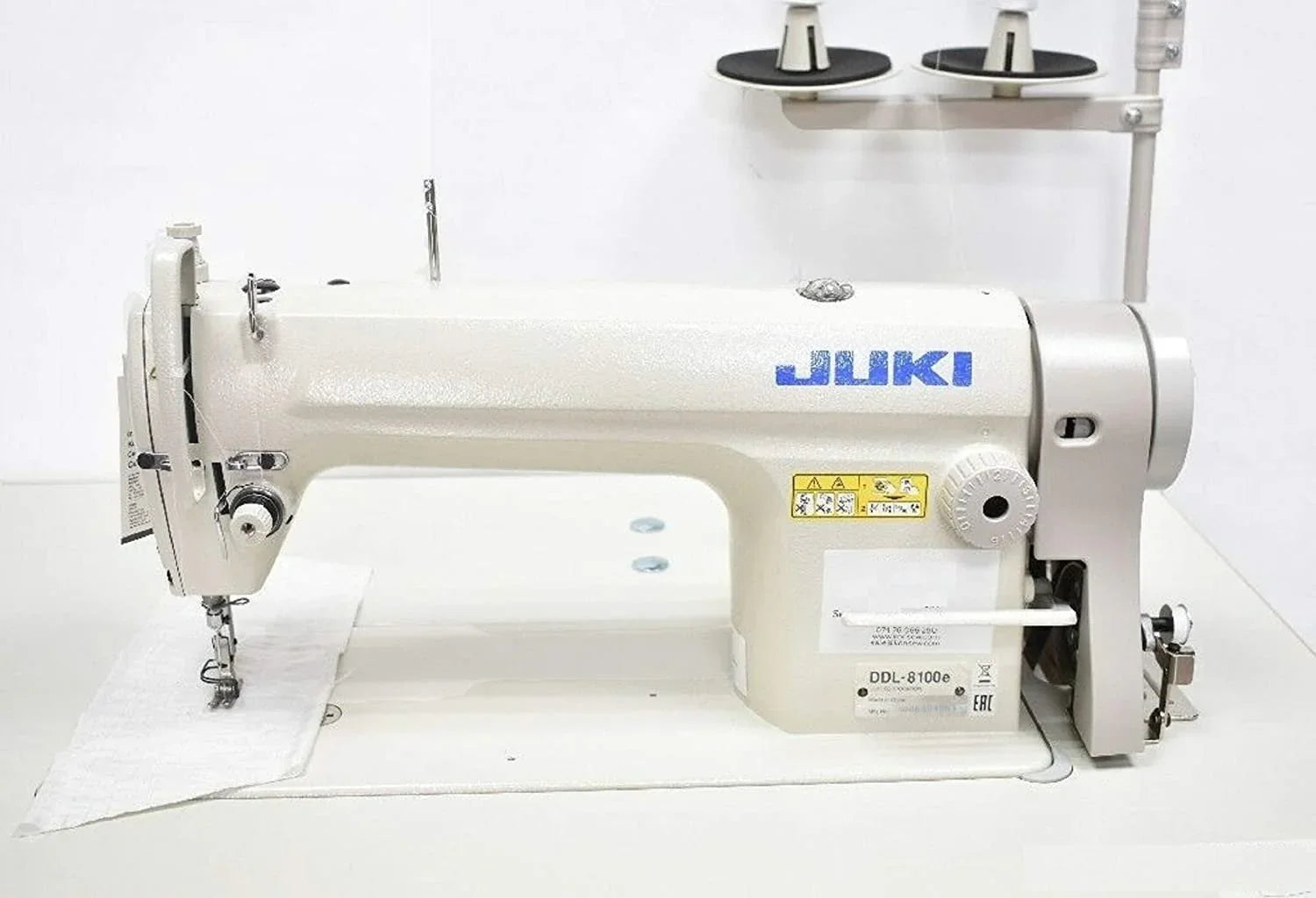

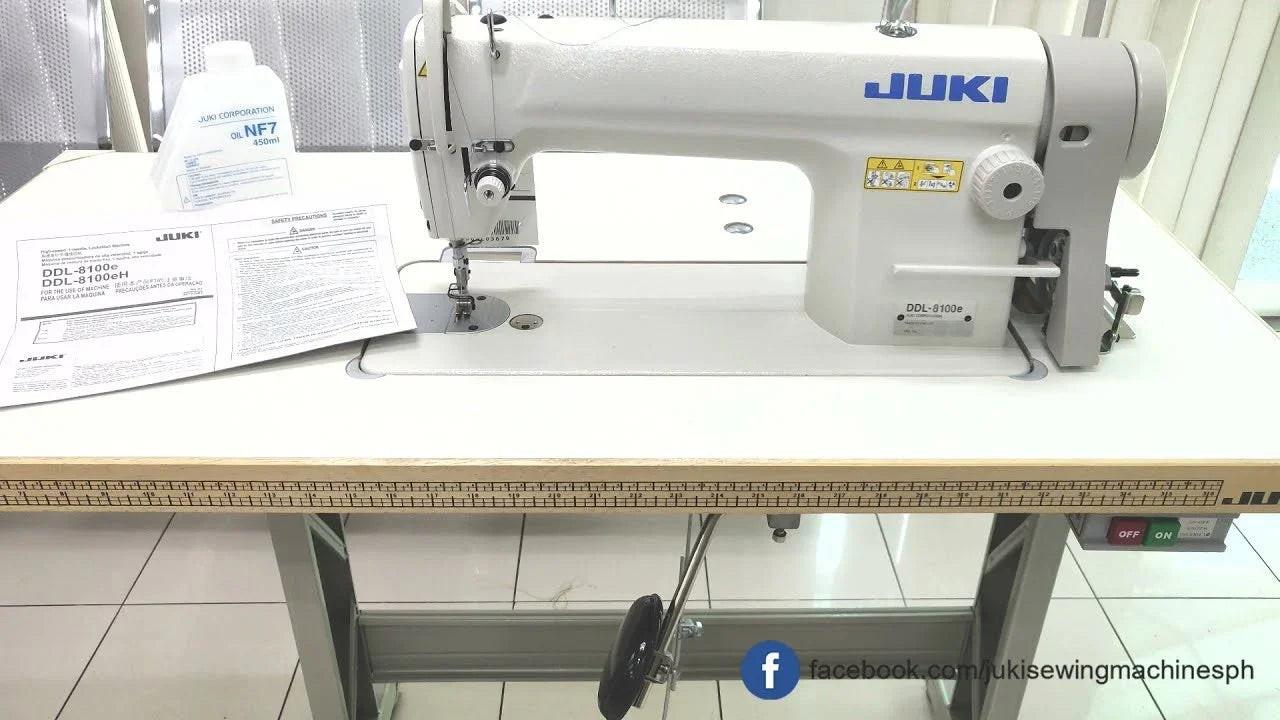

Discover the JUKI DDL-8100e, a high-speed 1-needle lockstitch sewing machine designed for light to medium-weight fabrics. With 4,500 stitches per minute, automatic lubrication, and low vibration & noise, it ensures smooth, durable, and efficient stitching. Perfect for industrial and professional sewing needs. ?? #JUKI #SewingMachine #Lockstitch
Application:
- Light- to Medium-weight fabrics
Specifications:
-
Max. Sewing Speed: 4,500 stitches per minute (sti/min)
-
Max. Stitch Length: 5mm
-
Needle Bar Stroke: 30.7mm
-
Lift of the Presser Foot:
- By hand: 5.5mm
- By knee: 13mm
-
Needle Type: DB×1 (#14), range #9–#18
-
Feed Dog: 3-row
-
Hook: Automatic-lubricating full-rotary hook
-
Lubrication: Automatic
-
Lubricating Oil: JUKI MACHINE OIL No. 7 (equivalent to ISO VG7)
-
Machine Head Weight: 26kg
Additional Features:
-
Low-Tension Sewing: Designed for high-quality, consistent seams on various fabrics
-
Reduced Vibration & Noise: Optimized machine frame structure for balance, strength, and rigidity
-
Improved Operability:
- High presser foot lift (13mm)
- Light-touch stitch dial for ease of use
-
Attachment Mounting Seats: Standard mounting seats for future auxiliary parts
-
Ergonomic Hand Pulley: Deep recess for a firm grip and easy rotation
-
Eco-Friendly: Complies with JUKI ECO PRODUCTS standards and the RoHS Directive for hazardous substance reduction
