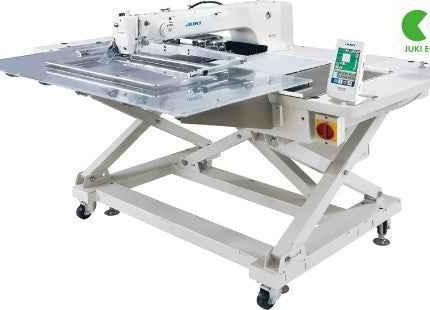

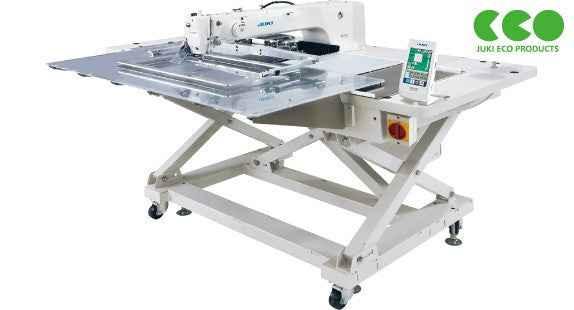

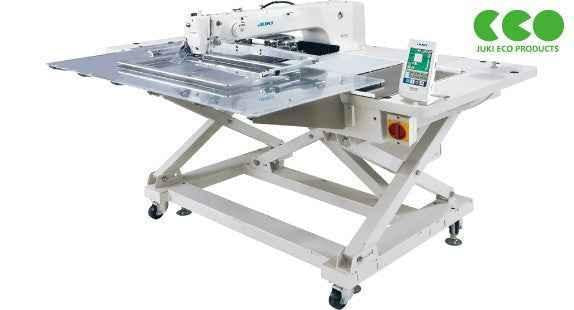

• The cycle machine, which has a wider sewing area, achieves an improved seam quality, increased productivity and easier operation

  The machine not only achieves higher productivity due to instantaneous increases/decreases in sewing speed at the beginning /end of sewing and increased speed of thread trimming, but also achieves a flexible responsiveness to materials to promise enhanced seam quality due to JUKI's unique active tension and programmable intermediate presser.
  The AMS-EN Series has been favorably received in the market because of its ease of use, achieved by the smooth setting of sewing material and the large-sized color liquid crystal touch panel.
  The following two additional models are now added to the Series:

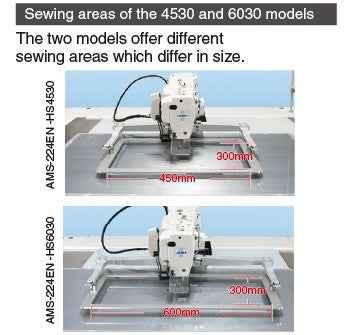

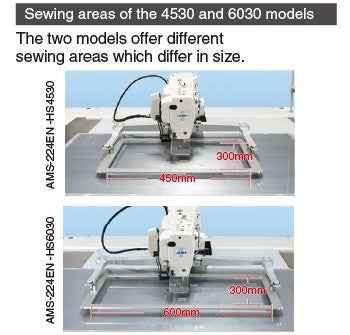

  The AMS-224EN-4530 [450mm(X)×300mm(Y)]
  The AMS-224EN-6030 [600mm(X)×300mm(Y)]
  A newly developed encoder-controlled stepping motor system has been adopted for the X-Y feed mechanism. This contributes to more accurate sewing performance and increased productivity.



• Applications

  The machine performs various kinds of stitching, making the most out of its wider sewing area in various sewing applications such as attaching handles to bags and pouches, attaching belts, sewing many small parts at a time, attaching parts to shoes and sports shoes (one pair of shoes) and sewing air bags.

• Power consumption is substantially reduced

  The AMS-224EN has been designed laying importance on electrical power saving for increased economization. The machine has adopted the direct-drive system utilizing a compact-sized AC servomotor to drive the machine head. It has also adopted an encoder control system which drives the stepping motor with a minimum electrical power according to the weight of the material and stitch length for the material-feeding X-Y drive. With these two systems, the average power consumption of the machine is reduced by 30% during operation and 45% during standby as compared with our conventional model (AMS-224C) which does not incorporate the encoder control system.
  *The graph provides a comparison between the AMS-224EN and AMS-224C when sewing shape tacking (approximately 1,000 stitches) of the upper parts of right and left shoes under the continuous sewing mode.



• Higher productivity

  • The machine achieves the highest sewing speed of 2,500sti/min among those with a similar sewing area. The maximum sewing speed is reached by the 2nd stitch from the beginning of sewing. The machine remains at the maximum sewing speed until just before the end of sewing and decelerates instantaneously.
  • JUKI's unique stepping-motor controlled thread trimming mechanism is adopted to enable speedy and consistent thread trimming performance, substantially reducing the total cycle time.
  • The machine demonstrates enhanced responsiveness due to the adoption of a main-shaft direct-drive system.


• Sewing quality leap forward

  The position of the feed can be checked during sewing by means of the encoder-controlled X-Y drive stepping motor. This remarkably improves accuracy of the feed. As a result, deformation of a sewing pattern which is likely to occur when sewing at a high speed or sewing a heavy-weight material is significantly reduced.

• Semi-dry head

  The frame (needle bar unit and thread take-up unit) is lubricated with grease, and the hook is fed with a minute quantity of oil from the oil tank.
  JUKI’s advanced dry technology, which is utilized in a number of our sewing machine models, protects your products from being stained with oil.



• Active tension

  Market-proven active tension has been introduced to the needle thread tension controller. With the active tension, pinpoint changes in the needle thread tension during sewing are enabled. The needle thread tension, therefore, can be set in conjunction with the material thickness and can be corrected according to the direction of sewing on a stitch-by-stitch basis through the operation panel. Since the needle thread tension is reproducible, supporting a broader range of sewing conditions, the time required for setup changing upon process changeover can be reduced.



• Programmable intermediate presser

  With the programmable intermediate presser, the height of the lower dead point of the intermediate presser can be set according to the material thickness, thereby not only preventing troubles in sewing such as stitch skipping and thread breakage, but also protecting the sewing product from being damaged by the presser. The height setting can be changed with ease even during sewing. The machine finishes beautiful uniform seams free from stitch skipping even on multiple parts of the material by the ideal combination of the active tension and programmable intermediate presser.



• The large-sized liquid crystal touch panel, which has been developed to ensure ease of operation, dramatically increases efficiency in edit workIP-420

  The IP-420 touch panel offers market-proven ease of operation. It is provided with a wide screen and programmable functions. Data can be input/edited while visually checking the needle movement.
  The color LCD unit displays sewing data such as stitch shape, needle thread tension, enlargement/reduction ratio, sewing speed and the number of stitches at a glance. The IP-420 is provided as standard with 14 different display languages.
  • Key-lock customization function
    The key-lock state can be set as desired. It is therefore possible to hide items which should not be handled by the operators.
  • Simplified operation mode
    Simplification of set items and screen transition of the IP-420 increases ease of use and helps reduce operator fatigue.


• The memory storage capability of the main body of the sewing machine has been dramatically enhanced


  Now the USB-ready main body of the sewing machine uses many different kinds of media

  Sewing data created with the IP-420 can be stored in the memory of the main body of the sewing machine. The memory storage capacity is 500,000 stitches and 999 patterns (max. 50,000 stitches per pattern) at the maximum. In addition to the CompactFlash 33 card, the main body of the sewing machine is provided as standard with a USB connector. Now, data can be input/output to/from various kinds of media (FD (floppy disks), SM (SmartMedia), CF (CompactFlash), SD (Secure Digital Card) etc.) by means of a USB thumb device and a card reader. The maximum number of stitches that can be stored in the memory for each medium is approximately 50,000,000.



• Hand pulley

  With the hand pulley which is laid out on the machine arm, not only the height of the needle bar or intermediate presser but also the needle entry point at the time of data programming can be adjusted with ease



• Feeding frame

  The feeding frame lift is 30mm at the maximum. This enables easy setting of a heavy-weight material on the machine.



• PK 2-pedal unit
  (with a mechanical valve pedal)

  The mechanical valve goes up and comes down corresponding to the depressed depth of the pedal. This enables easy positioning of a part to be sewn.



• Hook driving shaft pulley

  A pulley is also provided on the lower part of the machine. This enables easy adjustment of the hook.



Specification

Model name	AMS-224EN-HS4530	AMS-224EN-GB4530	AMS-224EN-HS6030	AMS-224EN-GB6030
Application	Medium-to heavy-weight	Extra heavy-weight	Medium-to heavy-weight	Extra heavy-weight
Feeding frame type	Monolithic feeding frame:(Pneumatic work clamp)	Double-stepped stroke feeding frame:(Pneumatioc work clamp)	Monolithic feeding frame:(Pneumatic work clamp)	Double-stepped stroke feeding frame:(Pneumatioc work clamp)
Max. sewing speed	2,500sti/min* (stitch length 3mm or less)
Sewing area	450mm (X) ×300mm (Y)		600mm (X) ×300mm (Y)
Settable stitch length	0.1~12.7mm (0.05mm step)
Needle bar stroke	41.2mm
Lift of the feeding frame	Max. 30mm
Lift / Stroke of intermediate presser	Lifting amount : 20mm / Stroke : Standard 4mm (0~10mm)
Variable lower position of the intermediate presser	Standard 0~3.5mm (max. 0~7.0mm)
Change in height of the intermediate presser	Stepless control by programming (controlled by a stepping motor)
Needle thread tension	Active tension (electronic thread tension control mechanism)
Needle thread breakage detecting device	Provided as standard
Needle thread clamp	Stepping-motor driven clamping on the underside of the throat plate
Prevention of the slip-off of thread at the beginning of sewing	Prevented by the needle thread clamp and active tension
Thread trimming device	High-speed thread trimming mechanism driven by a stepping motor
Needle (at the time of delivery)	DP×17 (#18) (135×17 Nm110)	DP×17 (#23) (135×17 Nm260)	DP×17 (#18) (135×17 Nm110)	DP×17 (#23) (135×17 Nm260)
Thread	#50~#2	#20~#2	#50~#2	#20~#2
Hook	Double-capacity shuttle hook
Storage of pattern data in the memory	Main-body memory: Max. 500,000 stitches, 999 patterns (max. 50,000 stitches / pattern)
	External media: Max. 50,000,000 stitches, 999 patterns (max. 50,000 stitches / pattern)
Enlarging / Reducing facility	Pattern can be enlarged / reduced independently in the X and Y directions 1%~400% (0.1% step)
Enlarging / Reducing system	Pattern enlargement / reduction can be done by increasing / decreasing either stitch length or the number of stitches (At the time of pattern selection, only the stitch length can be increased/decreased.)
Bobbin thread counter Product counter	Up / Down system (0~9,999)
Lubrication	The frame is lubricated with grease / The hook and hook driving shaft gear box are lubricated from a tank
Lubricating oil	Hook: JUKI New Defrix Oil No.2 (equivalent to ISO VG32)
Sewing machine motor	Compact AC servomotor (direct-drive system)
Power requirement Power consumption	Single-phase, 3-phase 200~240V / 550VA
Compressed air / Air consumption	0.5~0.55MPa (Max. 0.55MPa) / 1.8dm³ / min (ANR)
Total weight	401kg		410kg
Dimensions	1,703mm (W) ×1,370mm (D) ×1,200mm (H) (without thread stand)		1,923mm (W) ×1,370mm (D) ×1,200mm (H) (without thread stand)

*"sti/min" stands for "Stitches per Minute."

• For CompactFlash™, please use genuine JUKI products.
• "CompactFlash™"is a registered trademark of SanDisk Corporation, U.S.A.
• Microsoft Windows is a trademark of Microsoft Corporation, U.S.A., registered in the U.S.A. and other countries.
• Other company names and product names/brand names are trademarks or registered trademarks of the respective companies.

When you place orders

Gauge

AMS-224EN-HS4530
AMS-224EN-HB4530
AMS-224EN-GS4530
AMS-224EN-GB4530
AMS-224EN-HS6030
AMS-224EN-HB6030
AMS-224EN-GS6030
AMS-224EN-GB6030



	Guage	NEEDLE HOLE GUIDE		INNER HOOK PRESSER		INNER HOOK	INTERMEDIATE PRESSER		SECOND THREAD TENSION ASM.	THREAD TRIMMER LEVER (SMALL) ASM.	NEEDLE BAR THREAD GUIDE
Sewing spec. Needle size used	Figure
	Thread count	P/N	Remarks	P/N	Remarks	P/N	P/N	Remarks	P/N	P/N	P/N	Remarks
Light/ medium weight materials #11~#14	#60~#30	B242621000A	Φ1.6	14103352	Needle guard 1.3mm	40014964	40023632	Φ2.2, H type	40010508	B24152800A0	B1405210000	2-hole
Knitwear/ foundation #9~#11		B242621000C	Φ1.6, OP	14103352	Needle guard 1.3mm	40014964	B1601210D0E	Φ1.6, OP	40010508	B24152800A0	B1405210000	2-hole
Medium weight/ heavy weight materials #14~#18	#30~#20	B242621000B	Φ2.0, H type	14103352	Needle guard 1.3mm	40061991	40023632	Φ2.0, H type	40029411	B24152800A0	40026884	1-hole
							B1601210D0FA	Φ2.2, OP
Heavy weight materials #18~#21	#20~#8	B242621000D	Φ2.4,OP	14103352	Needle guard 1.3mm	40061991	40023632	Φ2.0, H type	40029411	B24152800A0	40026884	1-hole
		B242621000F	Φ3.0, G type	14103659	Needle guard 1.7mm		B1601210D0BA	Φ2.7, G type
Extra heavy weight materials #22~#25	#8~#2	B242621000G	Φ3.0, With counter bore, OP	14103659	Needle guard 1.7mm	40061991	B1601210D0BA	Φ2.7, G type	40029411	B24152800A0	40026884	1-hole
		B242621000F	Φ3.0, G type				B1601210D0CA	Φ3.5, OP
Heavy weight materials Counter measure against stitch skipping		B242621000H	Φ3.0, Eccentric, OP	B1817210DAD	Needle guard 1.9mm	40061991	B1601210D0CA	Φ3.5, OP	40029411	B24152800A0	40026884	1-hole

* Standard needle (DP×17#18), extra heavy ewight (DP×17#23)
