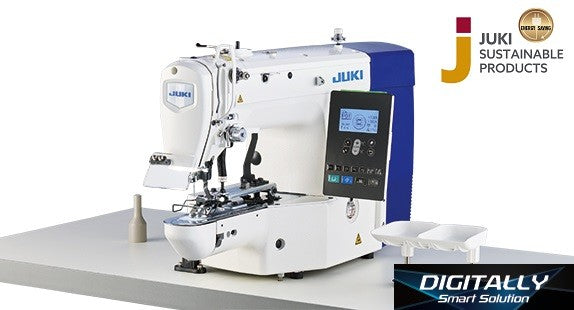

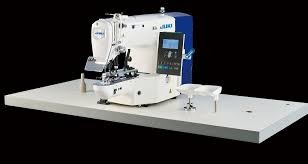

JUKI LK-1903C Direct Drive Lockstitch Button Sewing Machine
₹495,000.0
₹425,700.0 Save 14%
Tax included Quality Assured 🥇
Key Features:
High-Speed Button Sewing: Max speed of 2,700 stitches per minute improves productivity.
Direct Drive Motor: Energy-efficient AC servo motor for quick start-up and low vibration.
Digital Control Panel: Intuitive interface for selecting and managing sewing patterns.
Cycle Sewing Function: Supports automatic cycle sewing for continuous operation.
Supports Various Button Types: Compatible with flat buttons, shank buttons, and wrapped shank buttons.
50 Built-in Patterns: Additional patterns can be loaded via USB for customization.
Automatic Thread Trimming: Clean finishes and time-saving trimming after each cycle.
Quiet Operation: Low vibration and noise, ideal for long working hours.
USB Port & Data Storage: Enables pattern import/export and system updates.
Security policyYour security is our priority; we employ robust measures to safeguard your information.
Delivery policyTimely and reliable delivery is our commitment to you.
Return policy3 Days Easy Return Policy *
Technical Specifications:
| Specification | Details |
|---|---|
| Model | JUKI LK-1903C |
| Max Sewing Speed | 2,700 stitches/min |
| Max Stitch Length | 4.0 mm |
| Button Size Range | 8 mm – 20 mm |
| Needle Type | DPx17 (#14 standard) |
| Needle Bar Stroke | 41.2 mm |
| Motor Type | Direct Drive AC Servo Motor |
| Work Clamp Drive | Pneumatic |
| No. of Built-in Patterns | 50 (expandable via USB) |
| Thread Trimming | Automatic |
| Lubrication System | Minimum oil lubrication |
| Power Supply | 220V, Single Phase |
| Machine Head Weight | Approx. 42 kg |
❓ Frequently Asked Questions (FAQs):
Q1. What types of buttons can I sew with the JUKI LK-1903C?
A: It supports flat buttons, shank buttons, and wrapped shank buttons.
Q2. Can this machine handle high-volume production?
A: Yes, it's built for industrial use with high-speed performance and cycle sewing functionality.
Q3. Is it possible to load custom patterns into the machine?
A: Yes, additional patterns can be added using the USB port.
Q4. Does it require a compressor?
A: Yes, the pneumatic work clamp requires an external air compressor.
Q5. Is it noisy during operation?
A: No, the direct drive system reduces both noise and vibration significantly.
